Adaptive Nozzles Are Changing the 3D Printing Game

For years, the humble nozzle on our 3D printers has been a fixed entity. We’ve swapped them out for different diameters to achieve varying levels of detail and speed, but once locked in, that was it. Now, imagine a world where your printer's nozzle isn't static, but dynamically morphs its diameter and even its shape in real time, adapting to the intricate demands of each layer, each feature, and each moment of the print. This isn't science fiction anymore – adaptive nozzle technology is emerging, and it's poised to revolutionize the way we think about 3D printing.

Breaking the Static Barrier: The Limitations of Fixed Nozzles

Think about the compromises we currently make with fixed nozzles:

• Detail vs. Speed: Want intricate details? You need a smaller nozzle, which means longer print times. Need to fill large areas quickly? A wider nozzle sacrifices fine features.

• Surface Finish vs. Strength: Smaller layers from smaller nozzles often yield smoother surfaces but can sometimes compromise layer adhesion and overall strength compared to thicker layers from wider nozzles.

• Support Structures: Overhangs and complex geometries often necessitate support structures, adding material waste and post-processing time. A nozzle that could dynamically adjust might handle these challenges more efficiently.

Adaptive nozzle technology aims to shatter these limitations, offering a dynamic approach to material extrusion that could unlock unprecedented levels of control and efficiency.

How Does an Adaptive Nozzle Work? (The Emerging Concepts)

While the exact mechanisms may vary depending on the research and development, the core idea revolves around the nozzle's ability to alter its output in real time. Here are some potential approaches being explored:

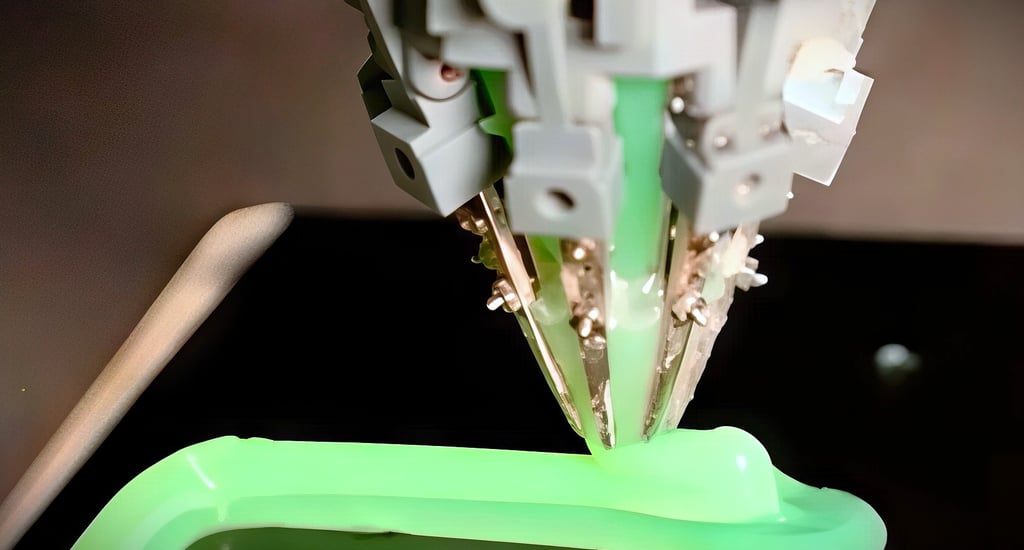

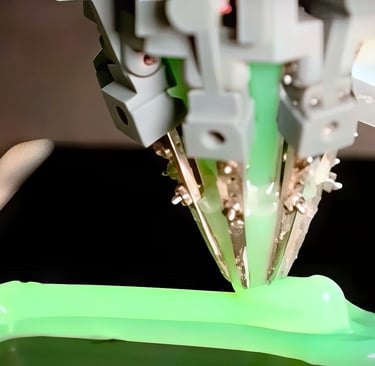

• Iris-like Mechanisms: Imagine a tiny, precise iris within the nozzle that can open and close, effectively changing the orifice diameter during the print. This would allow for wide extrusions for infill and faster layer deposition, instantly narrowing for intricate details and outer perimeters.

• Flexible Nozzle Tips: Some concepts involve nozzle tips made of flexible, responsive materials that can be actuated by microfluidics, piezoelectric elements, or magnetic fields. These tips could change their shape – becoming wider, narrower, or even adopting a non-circular profile – on demand.

• Multi-Orifice Nozzles with Selective Activation: Instead of a single changing orifice, some designs might incorporate multiple micro-nozzles that can be selectively activated or deactivated to control the effective extrusion width and even potentially deposit different materials or mix them in-flight with future advancements.

The Potential Game-Changing Benefits:

The implications of a truly functional adaptive nozzle are vast and incredibly exciting:

• Unprecedented Detail and Speed in a Single Print: Imagine printing a part with robust, fast-printed infill and intricate, high-resolution outer layers all in the same seamless process, without needing to swap nozzles or compromise on either speed or detail.

• Optimized Surface Finish and Strength: The nozzle could lay down thicker layers for internal strength and then switch to finer layers for a smooth, aesthetically pleasing exterior.

• Reduced or Eliminated Support Structures: A nozzle that can dynamically adjust its shape and flow might be able to create more gradual overhangs or even locally vary the extrusion width to support overhanging features without the need for sacrificial support material.

• Material Efficiency: By precisely controlling the amount of material extruded and optimizing layer thickness on the fly, adaptive nozzles could lead to more efficient material usage and lighter, yet stronger, parts.

• New Material Capabilities: The ability to dynamically control flow and potentially mix materials at the nozzle could open doors to printing with gradients, complex material interfaces, and even on-the-fly material property adjustments (though this is further down the line).

• Simplified Workflow: No more pausing prints to swap nozzles for different requirements. The entire process becomes more streamlined and automated.

The Road Ahead: Challenges and the Promise of Tomorrow

While the potential is immense, adaptive nozzle technology is still in its early stages. Significant challenges need to be overcome in terms of:

• Miniaturization and Precision: Creating micro-mechanisms or responsive materials that can operate with the required speed and accuracy within the tiny confines of a 3D printer nozzle is a complex engineering feat.

• Control Systems and Software: Developing the sophisticated software and real-time control systems needed to orchestrate the dynamic changes in nozzle geometry and extrusion flow will be crucial.

• Material Compatibility: Ensuring that the adaptive mechanisms can function reliably with a wide range of 3D printing materials and temperatures is essential.

• Cost and Integration: Making this technology affordable and easily integrated into existing and future 3D printer designs will be key for widespread adoption.

Despite these hurdles, the progress being made in this area is incredibly promising. Adaptive nozzle technology represents a fundamental shift in how we approach 3D printing, moving beyond the limitations of static tools towards a more fluid, intelligent, and ultimately more capable future for additive manufacturing. Keep an eye on this space – the way we print is about to get a whole lot more dynamic.
