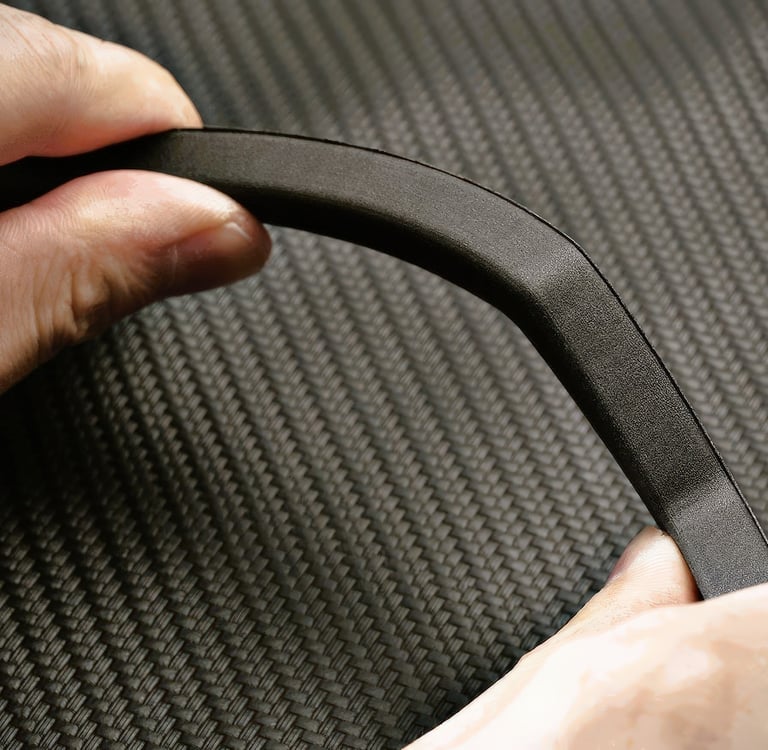

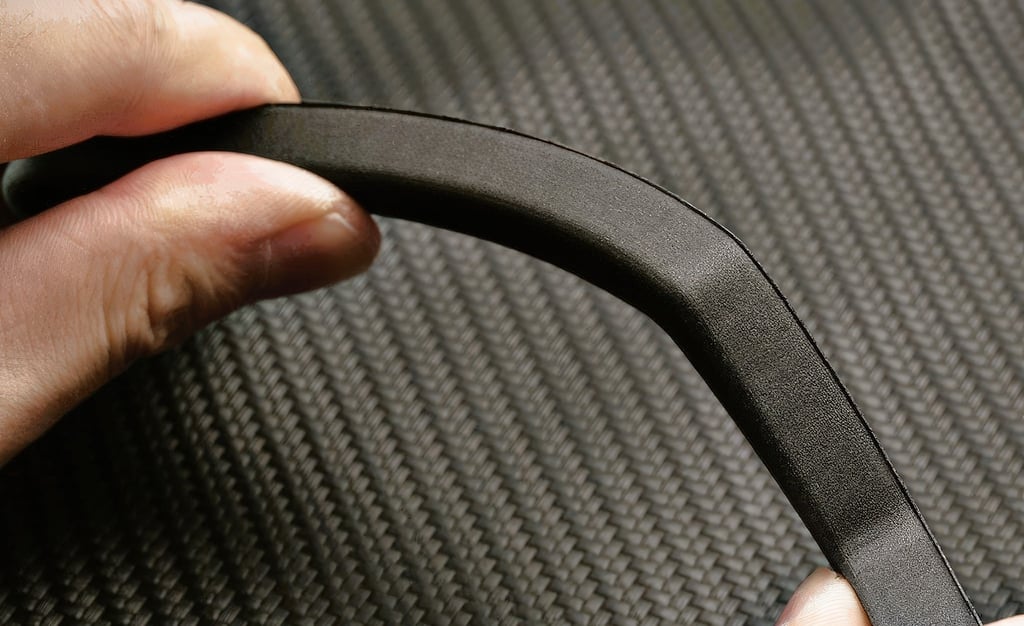

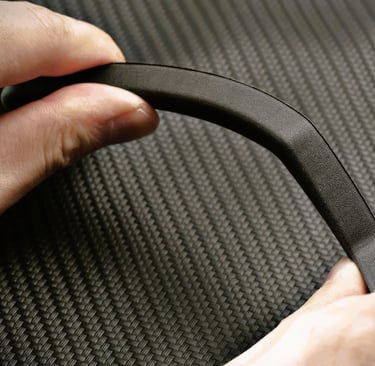

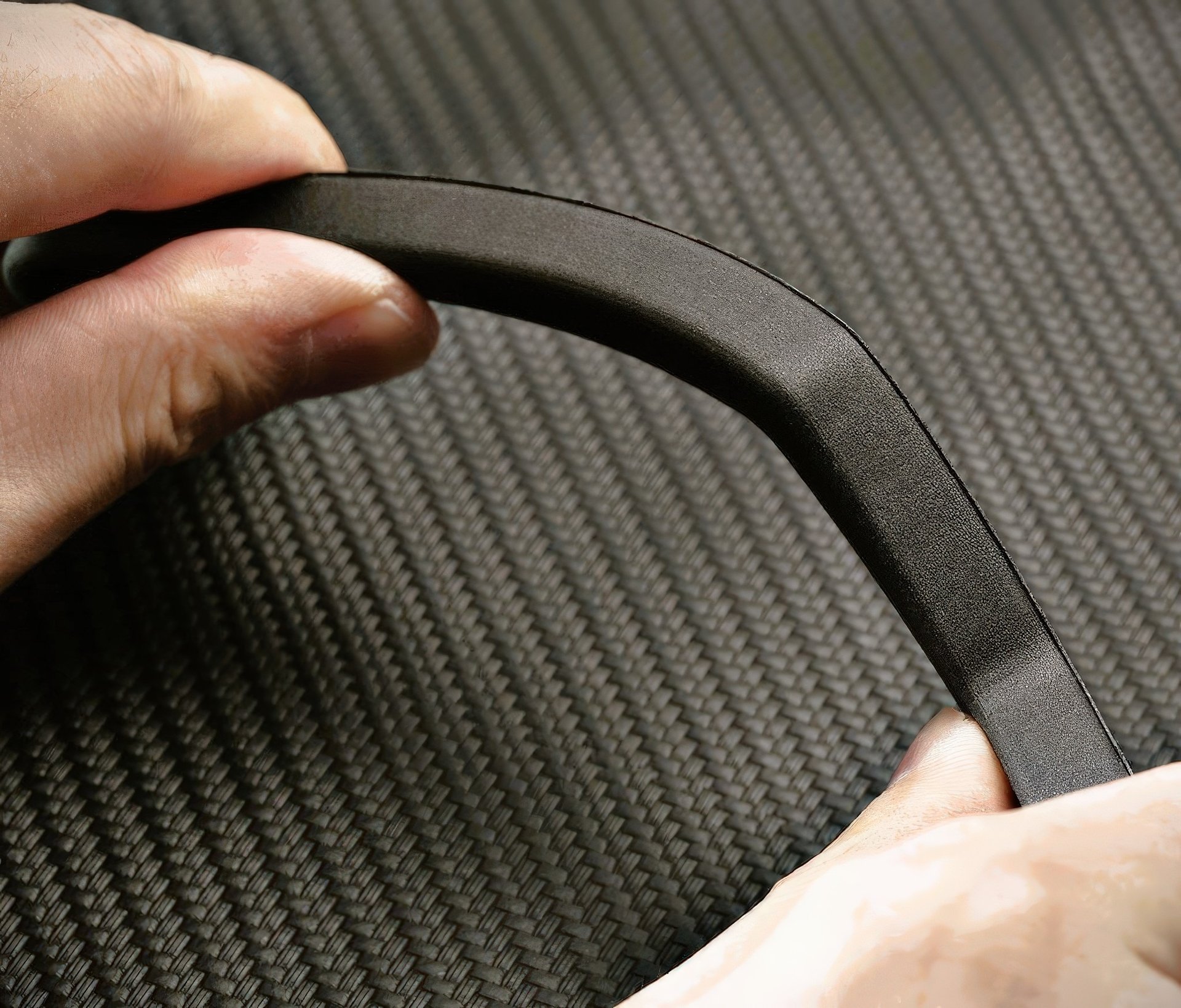

Carbon Fiber Nylon: Strength Meets Lightweight Performance in 3D Printing

MATERIALS

3/25/20253 min read

In the ever-evolving world of 3D printing, the demand for materials that offer both exceptional strength and lightweight properties is constantly growing. This is where Carbon Fiber Nylon steps in, a composite filament that combines the inherent toughness of Nylon with the reinforcing power of carbon fibers. This powerful combination unlocks a new level of performance, making it a game-changer for a variety of demanding applications.

Understanding Carbon Fiber Nylon

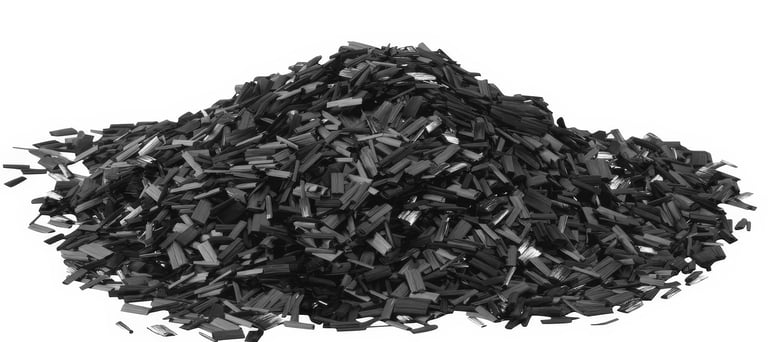

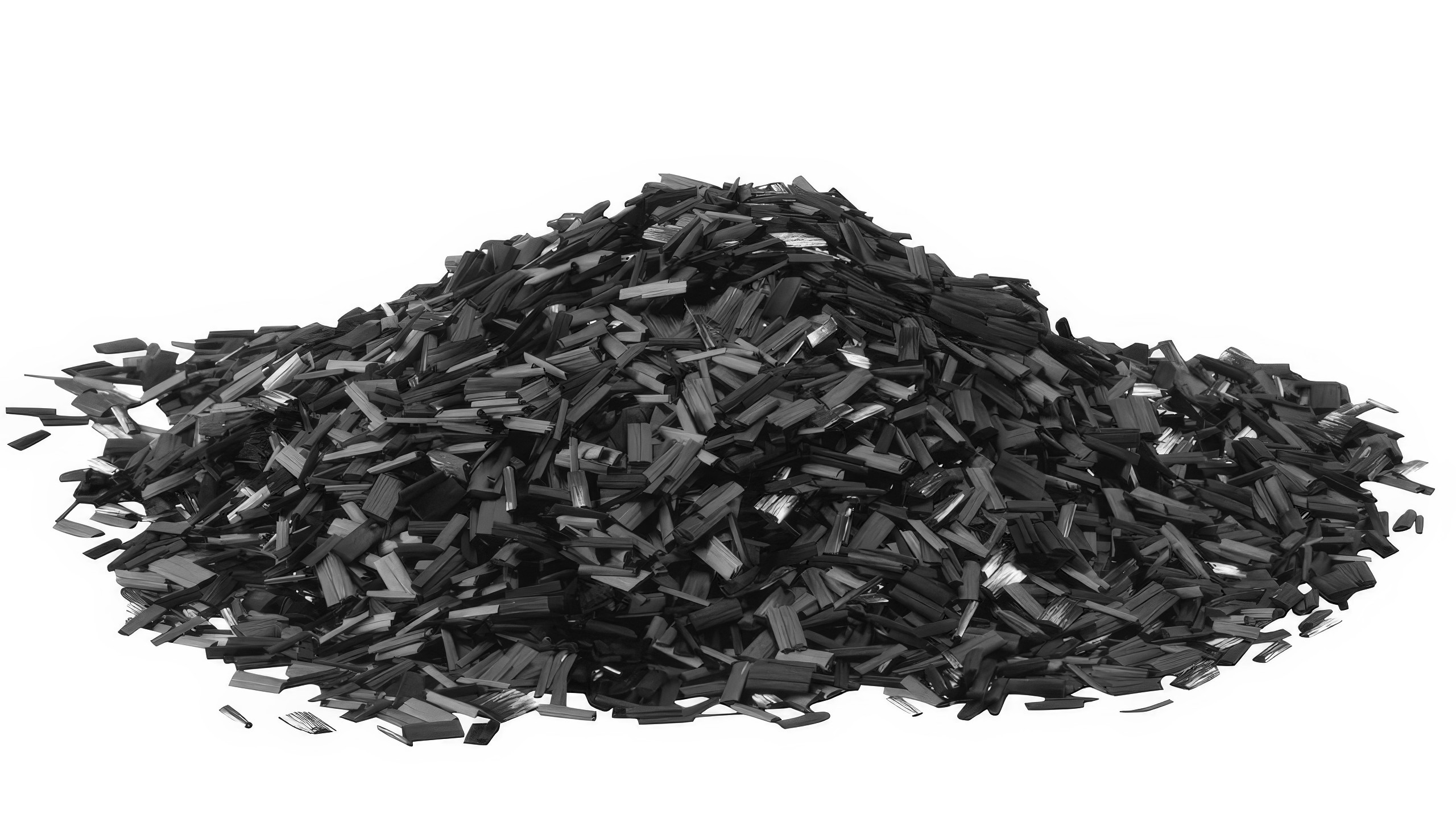

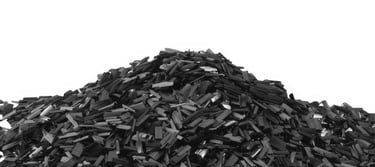

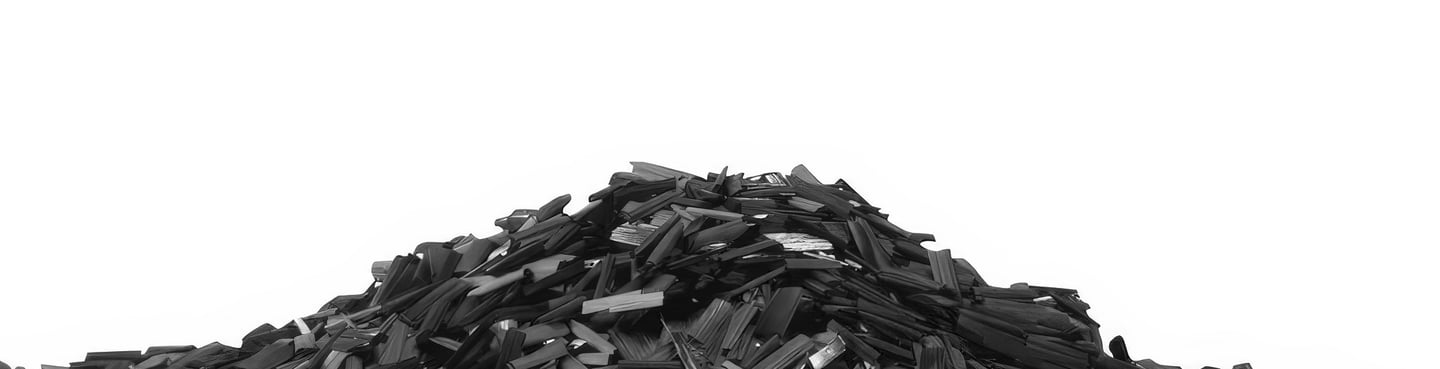

Carbon Fiber Nylon is a composite filament that blends Nylon, a robust and durable polymer, with short strands of carbon fiber. These fibers act as reinforcement, significantly enhancing the mechanical properties of the Nylon base material. It's important to differentiate this from continuous carbon fiber reinforcement, which is a different and more advanced technique. In Carbon Fiber Nylon filament, the carbon fibers are short and dispersed throughout the Nylon matrix.

Nylon: A Strong Foundation

Nylon, also known as polyamide (PA), is a versatile thermoplastic known for its:

  • High tensile strength: The ability to withstand pulling forces.

  • Excellent toughness: Resistance to fracture or breakage.

  • Good chemical resistance: Ability to withstand exposure to various chemicals.

  • Durability: Long-lasting performance in demanding environments.

  • Flexibility: Depending on the type of Nylon, it can possess a degree of flexibility.

The Reinforcing Power of Carbon Fiber

Carbon fibers are renowned for their exceptional strength-to-weight ratio. When incorporated into Nylon, they provide:

  • Increased Rigidity: Reduces flexing and improves stiffness.

  • Enhanced Strength: Boosts tensile strength and overall load-bearing capacity.

  • Improved Dimensional Stability: Minimizes warping and shrinkage.

  • Lightweight Properties: Maintains the inherent lightness of Nylon.

The Synergistic Effect: Carbon Fiber Nylon

By combining Nylon and carbon fiber, Carbon Fiber Nylon offers a synergistic effect, resulting in a filament with:

  • Exceptional Strength-to-Weight Ratio: This is the hallmark of Carbon Fiber Nylon, making it ideal for applications where weight reduction is crucial without sacrificing strength.

  • High Stiffness and Rigidity: The carbon fibers provide a significant boost in stiffness, making it suitable for structural components.

  • Improved Durability and Toughness: The Nylon base ensures toughness, while the carbon fiber enhances overall durability.

  • Good Chemical Resistance: Inherits the chemical resistance properties of Nylon.

Applications Across Industries

Carbon Fiber Nylon's unique combination of properties makes it a valuable material for a variety of demanding applications:

  • Aerospace:

    • Structural components for drones and UAVs.

    • Lightweight brackets and fixtures.

    • Tooling for composite manufacturing.

  • Automotive:

    • Functional prototypes and end-use parts.

    • Lightweight components for racing or performance vehicles.

    • Jigs and fixtures for production.

  • Robotics:

    • Lightweight and strong robotic arms and end effectors.

    • Structural components for robots.

    • Gears and other mechanical parts.

  • Manufacturing:

    • Custom tools and fixtures.

    • End-of-arm tooling for automation.

    • Prototypes for injection molding.

  • Sports Equipment:

    • Lightweight and durable components for bicycles, sporting goods, and prosthetics.

Printing Considerations

While Carbon Fiber Nylon offers exceptional performance, it's essential to consider the following:

  • Abrasiveness: Carbon fiber is abrasive and will wear down standard brass nozzles. Hardened steel or wear-resistant nozzles are crucial.

  • Printing Temperature: Nylon generally requires high printing temperatures, and Carbon Fiber Nylon may need even higher temperatures for optimal layer adhesion.

  • Bed Adhesion: Nylon can be prone to warping, so a heated bed and good bed adhesion techniques are essential.

  • Moisture Sensitivity: Nylon is hygroscopic and readily absorbs moisture. Proper storage and drying of the filament are critical.

  • Enclosure: An enclosed 3D printer is often recommended to maintain a stable printing environment and prevent warping.

Conclusion

Carbon Fiber Nylon represents a significant advancement in 3D printing materials. Its ability to combine the strength and lightness of carbon fiber with the versatility of Nylon opens up new possibilities for creating high-performance parts. While it requires careful printing considerations, the rewards are well worth the effort for applications where strength, weight reduction, and durability are paramount. As 3D printing technology continues to evolve, Carbon Fiber Nylon and other advanced composite filaments will play a pivotal role in shaping the future of manufacturing.
