Continuous Liquid Interface Production: 3D Printing at the Speed of Light

INNOVATION

2/25/20252 min read

Continuous Liquid Interface Production (CLIP), also known as Digital Light Synthesis (DLS), is a groundbreaking 3D printing technology that has revolutionized the speed and quality of additive manufacturing. Developed by Carbon, CLIP leverages a unique photochemical process to create objects at speeds significantly faster than traditional 3D printing methods, while also achieving exceptional surface finish and mechanical properties.

The Magic Behind CLIP:

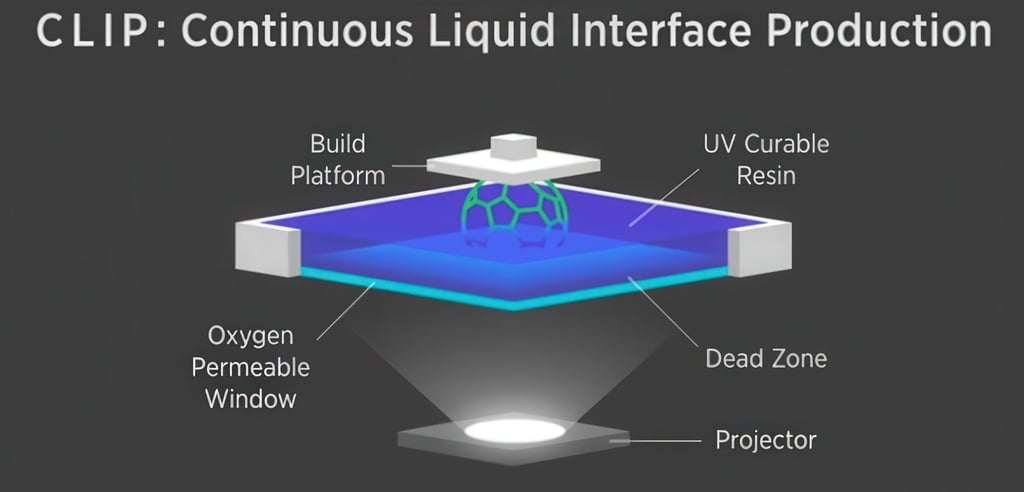

Unlike conventional layer-by-layer 3D printing, CLIP utilizes a continuous process that draws parts from a pool of liquid resin. Here's a simplified explanation:

  1. Oxygen-Permeable Window: A transparent window at the bottom of the resin vat allows UV light to pass through while also controlling the flow of oxygen.

  2. "Dead Zone": A thin layer of uncured resin is maintained between the window and the growing part. This "dead zone," controlled by oxygen, prevents the resin from adhering to the window.

  3. UV Projection: A UV light projector shines through the window, curing the resin in the desired shape.

  4. Continuous Growth: As the object grows, it is continuously drawn upwards, while the "dead zone" ensures a smooth, uninterrupted build process.

Advantages of CLIP:

CLIP offers several key advantages:

  • Speed: CLIP is significantly faster than traditional 3D printing methods, often producing parts in minutes rather than hours.

  • Surface Finish: The continuous process results in exceptionally smooth surfaces, comparable to injection molding.

  • Mechanical Properties: CLIP can create parts with isotropic mechanical properties, meaning they have consistent strength in all directions.

  • Material Variety: CLIP is compatible with a range of materials, including elastomers and high-performance resins, expanding its application possibilities.

Applications of CLIP:

CLIP is finding applications in diverse fields:

  • Prototyping: The speed of CLIP makes it ideal for rapid prototyping, allowing for quick iterations and design validation.

  • Production: CLIP's ability to produce high-quality, durable parts makes it suitable for end-use production in industries like automotive, aerospace, and medical.

  • Customization: CLIP enables the creation of highly customized products, catering to specific needs and applications.

The Future of CLIP:

CLIP is a relatively young technology with immense potential. Ongoing advancements in materials, software, and hardware are expected to further enhance its capabilities and expand its applications. As CLIP becomes more accessible and affordable, it is poised to play a significant role in shaping the future of manufacturing.
