From Layer Lines to Lustrous: The Magic of Vapor Smoothing

3D printing, while incredibly versatile, often leaves behind telltale layer lines – those tiny ridges that reveal the layered nature of the printing process. While these lines are sometimes acceptable, they can detract from the overall aesthetic of a print, especially when you're aiming for a polished, finished look.

Vapor smoothing offers a solution, and it's particularly effective with ABS (Acrylonitrile Butadiene Styrene) plastic.

How Does Vapor Smoothing Work?

The process is surprisingly simple in concept: it involves exposing your ABS print to chemical vapors that gently soften the surface of the plastic. This controlled softening causes the layer lines to melt and blend, resulting in a smoother, glossier finish.

• The Key Ingredient: Acetone

  Acetone is the most commonly used solvent for vapor smoothing ABS. Acetone vapors react with ABS, causing it to soften and become slightly malleable.

• The Vapor Chamber

The print is placed inside a sealed chamber, along with a small amount of acetone. As the acetone evaporates, it fills the chamber with vapors.

• Controlled Exposure

The ABS print is exposed to these vapors for a carefully controlled period. The duration of exposure depends on the desired level of smoothness and the size and complexity of the print.

• The Smoothing Effect

  The acetone vapors condense on the surface of the ABS, causing it to soften and flow slightly. This smooths out the layer lines and any other minor surface imperfections.

Benefits of Vapor Smoothing ABS:

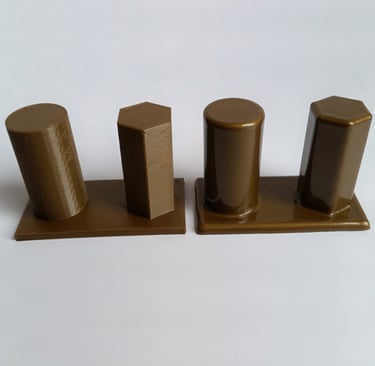

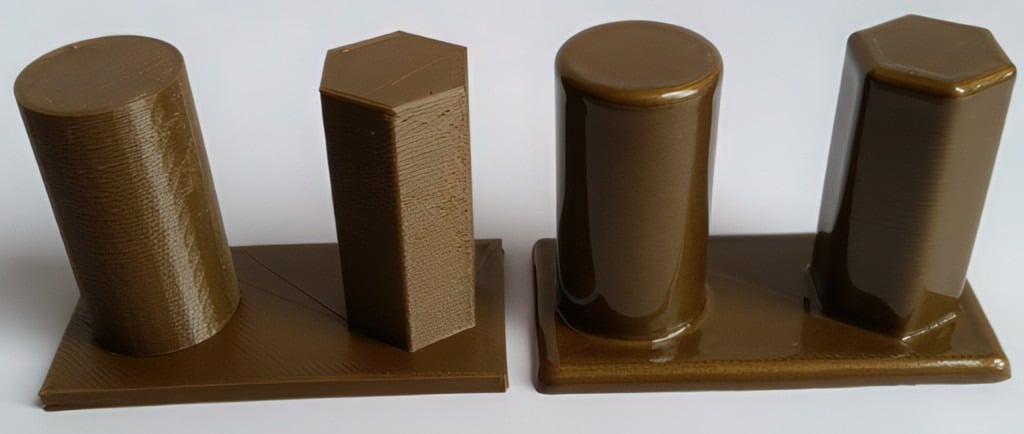

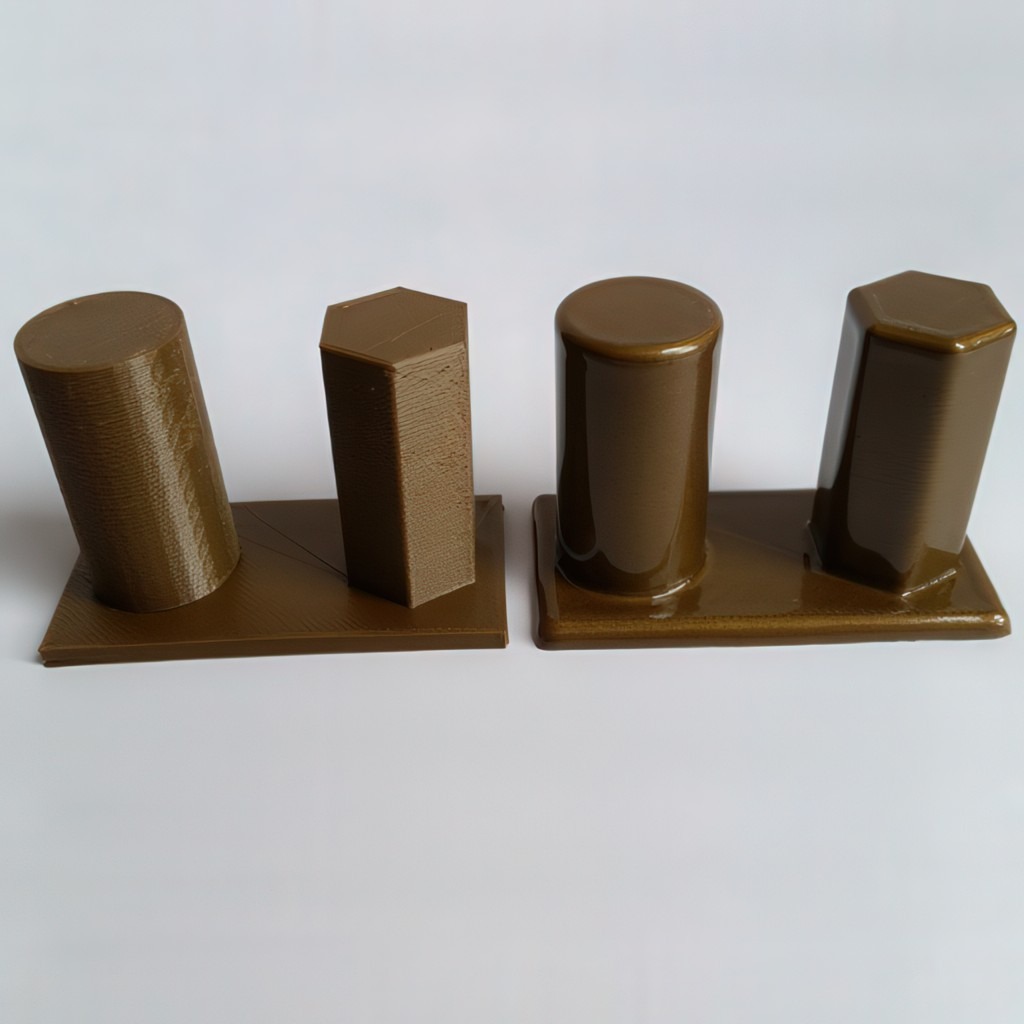

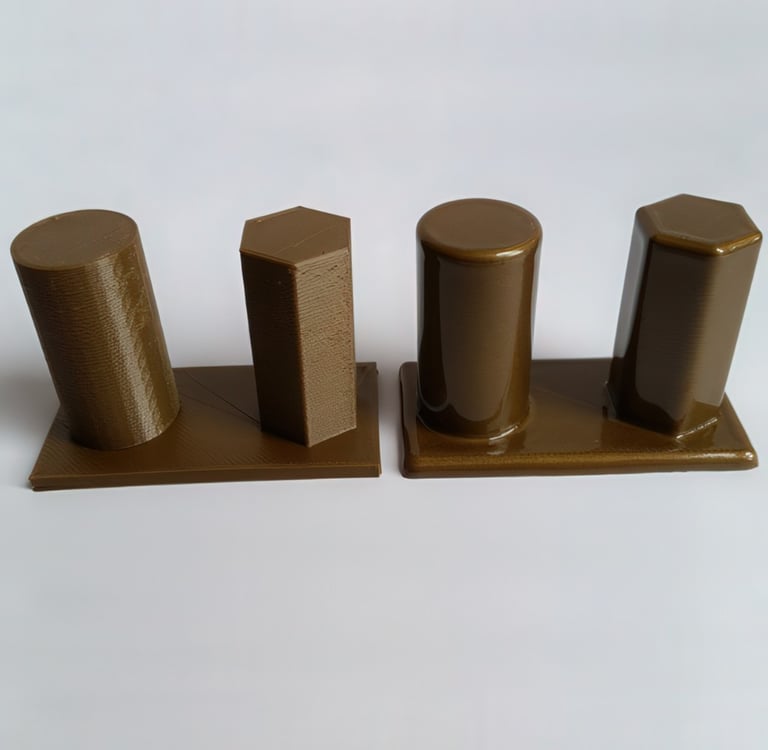

• Eliminates Layer Lines: The most obvious benefit is the dramatic reduction or elimination of visible layer lines, creating a more professional and polished appearance.

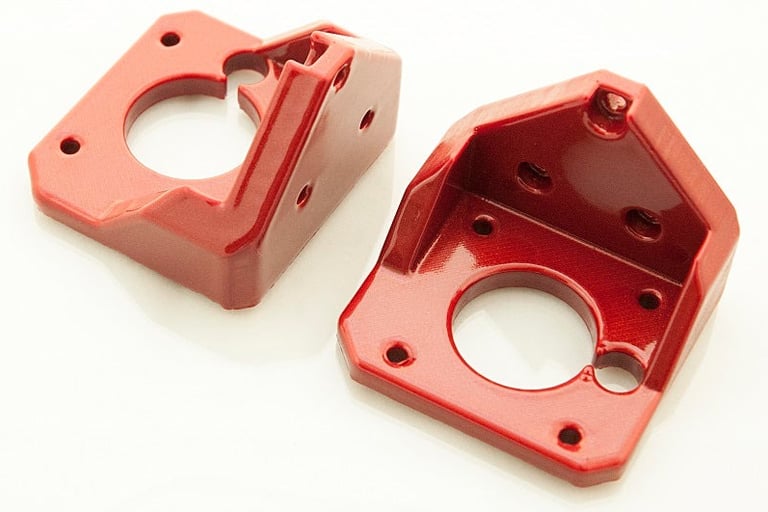

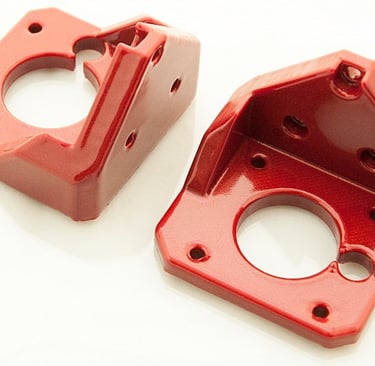

• Improves Surface Finish: Vapor smoothing can transform a matte, rough surface into a smooth, glossy finish, resembling injection-molded parts.

• Enhances Strength: By fusing the layers together more thoroughly, vapor smoothing can potentially improve the interlayer adhesion of ABS prints, making them stronger.

• Reduces Leakage: For prints designed to hold liquids or gases, vapor smoothing can reduce the risk of leaks by sealing any tiny gaps between layers.

Important Considerations and Safety Precautions:

• Material Compatibility: Vapor smoothing is primarily effective with ABS. Other plastics react differently to acetone and may not be suitable for this process.

• Safety First: Acetone is a volatile and flammable chemical. Work in a well-ventilated area, wear appropriate safety gear (gloves, eye protection), and avoid open flames or sparks.

• Controlled Process: Careful control over the exposure time is crucial. Overexposure can lead to deformation or loss of detail.

• Design Considerations: Prints with fine details or sharp edges may lose some definition during vapor smoothing.

• Chamber Construction: The vapor chamber must be airtight and made of materials that are resistant to acetone. Glass containers with tight-fitting lids are often used.

Methods for Vapor Smoothing:

• DIY Chamber: You can create a simple vapor chamber using a glass container with a lid, a platform to elevate the print, and a method to heat the acetone (carefully!).

  Here's a guide to help you get started:

  Materials You'll Need:

  • Airtight Container:

    • A glass container with a tight-fitting lid is highly recommended. Glass is resistant to acetone and allows you to monitor the process.

    • Alternatively, you can use a metal container with a lid, but ensure it's not reactive with acetone.

    • Important: Avoid using plastic containers, as acetone can dissolve or damage many plastics.

  • Elevated Platform:

    • You'll need a platform to elevate your print inside the chamber, preventing it from sitting directly in the acetone liquid.

    • Suitable options include:

      • A small metal rack

      • A wire mesh stand

      • A small glass jar or bowl turned upside down

  • Acetone:

    • Purchase pure acetone from a hardware store or pharmacy.

    • Safety Note: Acetone is flammable and should be handled with care.

  • Paper Towels or Absorbent Material:

    • To hold the acetone and create the vapors.

  • Safety Equipment:

    • Nitrile gloves (acetone can irritate the skin)

    • Eye protection (safety glasses or goggles)

  Construction and Setup:

  1. Prepare the Container:

     • Thoroughly clean the glass or metal container to remove any dust or debris.

     • Ensure the lid creates a tight seal to prevent acetone vapor from escaping.

  2. Create the Vapor Source:

     • Place a few folded paper towels or other absorbent material on the bottom of the container.

     • Carefully pour a small amount of acetone onto the absorbent material. You only need enough to saturate the material, not a pool of liquid.

  3. Position the Platform:

     • Place the elevated platform inside the container, ensuring it's stable.

  4. Place the Print:

     • Position your ABS print on the elevated platform. Make sure it's not touching the acetone-soaked material.

  5. Seal the Chamber:

     • Carefully and quickly close the lid of the container to create an airtight seal.

  The Vapor Smoothing Process:

  1. Monitor Closely:

     • Keep a close eye on the print as the acetone vapors begin to work. The ABS surface will start to become glossy.

  2. Control the Exposure Time:

     • The exposure time is critical and depends on several factors:

       • The size and complexity of the print

       • The desired level of smoothness

       • The temperature of the environment

     • Start with very short intervals (e.g., 1-2 minutes) and gradually increase the time as needed.

     • It's better to under-smooth than over-smooth, as you can always repeat the process.

  3. Remove and Dry:

     • Once the desired level of smoothness is achieved, carefully remove the print from the chamber and place it in a well-ventilated area to allow any residual acetone to evaporate completely.

• Commercial Systems: More sophisticated vapor smoothing systems are available, offering greater control and safety features.

Is Vapor Smoothing Right for You?

Vapor smoothing is a valuable technique for achieving a high-quality finish on ABS prints. It's particularly useful for:

• Cosmetic parts

• Display models

• Functional parts where a smooth surface is important.

However, it's essential to prioritize safety and understand the limitations of the process.

By mastering vapor smoothing, you can elevate your ABS prints to a new level of aesthetic appeal and functionality.
