The Dance of the Axes: Exploring Cartesian, Delta, and CoreXY 3D Printers

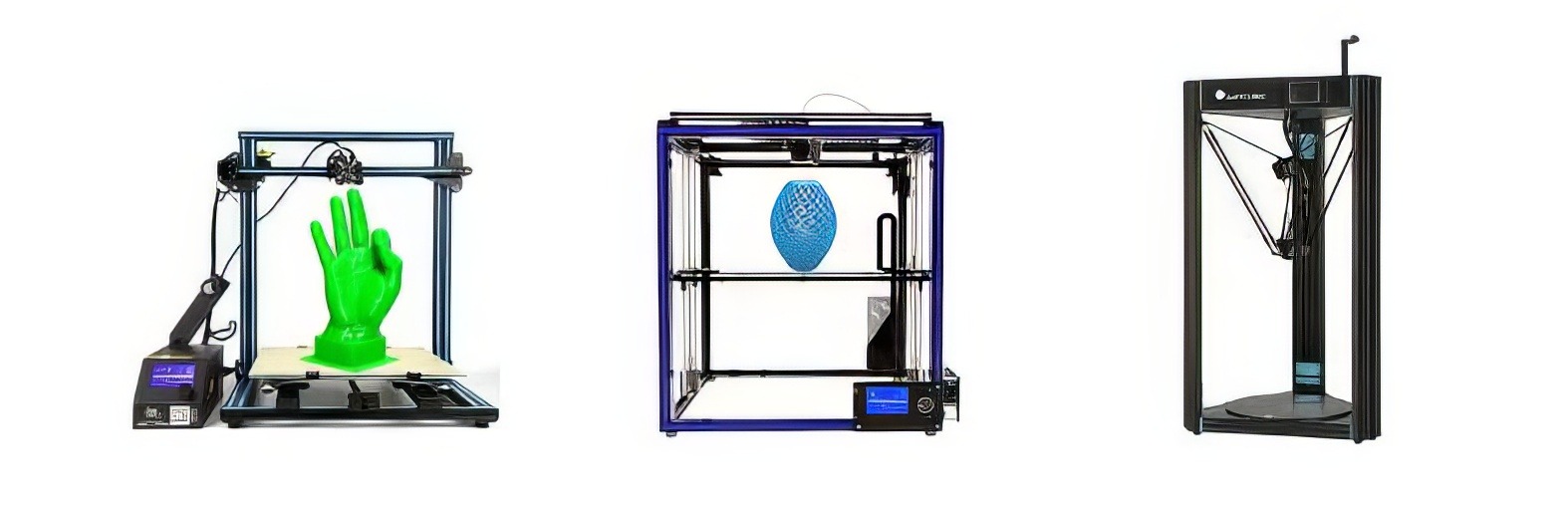

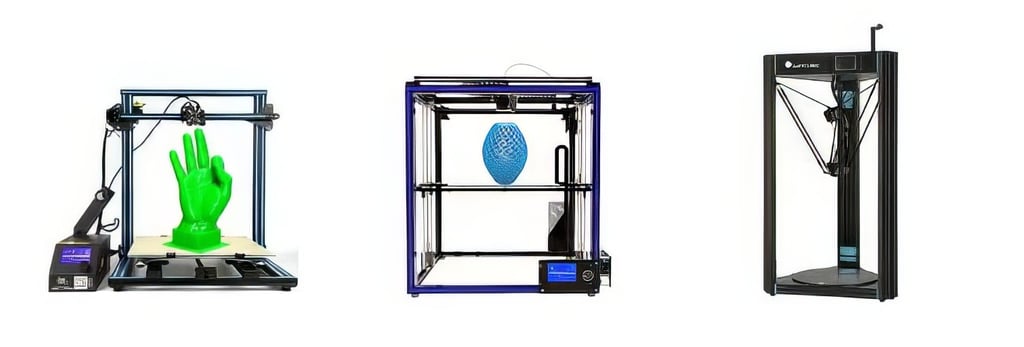

When you delve into the world of 3D printing, you'll quickly encounter a fascinating variety of printer designs. While they all achieve the same goal – building objects layer by layer – they differ significantly in how they move the print head. This fundamental difference in kinematics impacts speed, accuracy, build volume, and even the overall aesthetics of the printer. Let's explore three prominent configurations: Cartesian, Delta, and CoreXY.

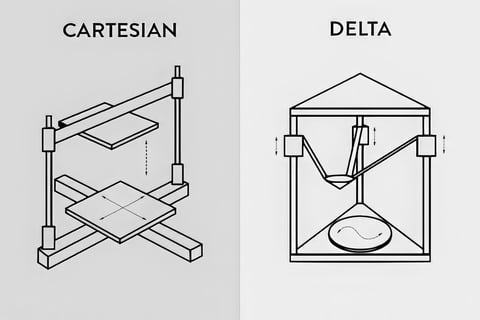

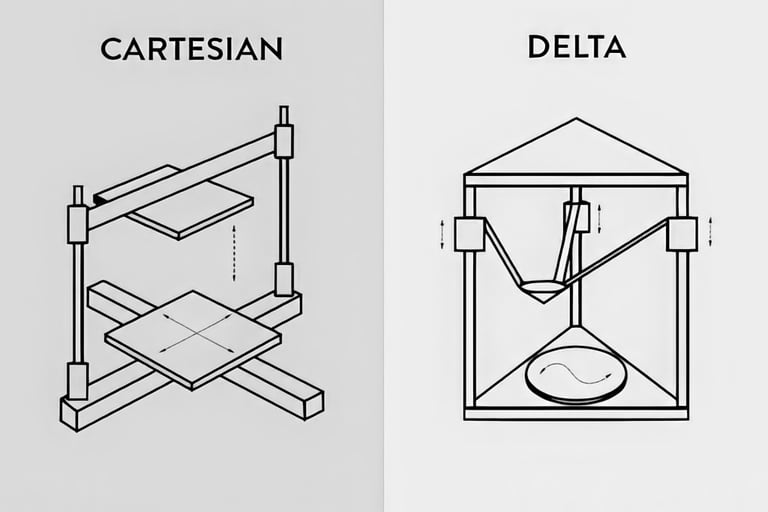

1. Cartesian: The Familiar Framework

Cartesian printers are the most common type, and they're named after the Cartesian coordinate system (X, Y, and Z axes). These printers utilize a straightforward, linear movement for each axis.

• How it Works:

  • The print head moves along the X and Y axes, typically on a rectangular frame.

  • The build platform moves vertically along the Z-axis.

  • Each axis is controlled by a separate motor and belt or lead screw.

• Types of Cartesian Printers:

  • i3 Style: The most common, where the Y-axis (bed movement) can cause vibration.

  • Box Frame: A more robust design where the frame is a box, reducing vibration.

  • H-Bot: A variation that uses a single belt to move in the X and Y axis, reducing the moving mass.

• Strengths:

  • Simplicity: Cartesian printers are mechanically simple, making them relatively easy to build and maintain.

  • Cost-effectiveness: These printers are generally more affordable than other configurations.

  • Wide Availability: A vast selection of Cartesian printers is available, from budget-friendly options to professional-grade machines.

• Weaknesses:

  • Inertia: The moving mass of the bed can limit print speeds, particularly in larger printers.

  • Vibration: Bed movement can introduce vibrations, affecting print quality.

  • Space Requirements: The rectangular frame can take up more space.

• Ideal Applications:

  • General-purpose printing

  • Beginner-friendly projects

  • Prototyping

  • Functional parts

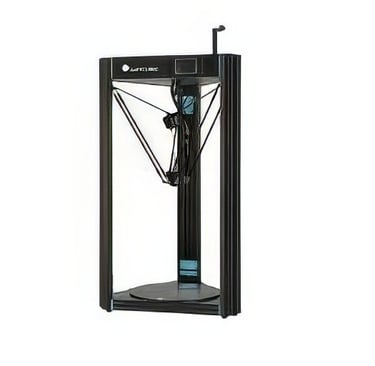

2. Delta: The Elegant Triad

Delta printers are known for their distinctive triangular frame and elegant, arm-based movement. They often look more like robotic sculptures than traditional printers.

• How it Works:

  • Three vertical towers surround a circular build platform.

  • Three arms, connected to carriages on the towers, move the print head in the X, Y, and Z axes.

  • The movement of each arm is coordinated to achieve precise positioning of the print head.

• Strengths:

  • Speed: Delta printers can achieve high print speeds due to the lightweight moving mass.

  • Tall Build Volume: The triangular frame allows for tall print objects.

  • Unique Aesthetics: Delta printers have a visually striking appearance.

• Weaknesses:

  • Complexity: The kinematics of Delta printers are more complex, making them more challenging to calibrate and troubleshoot.

  • Accuracy at Edges: Accuracy can sometimes decrease at the edges of the build platform.

  • Limited Build Area: The circular build area can be limiting for some projects.

• Ideal Applications:

  • Fast printing of tall objects

  • Artistic and decorative prints

  • Applications where speed is paramount

3. CoreXY: The Belt-Driven Precision

CoreXY is a popular variation of the Cartesian system that aims to improve speed and reduce inertia by using a complex belt arrangement.

• How it Works:

  • The build platform moves along the Z-axis.

  • The X and Y axes are controlled by a sophisticated system of belts and pulleys, where motors are stationary.

  • This reduces the moving mass of the print head, enabling faster and more precise movements.

• Strengths:

  • Speed and Acceleration: CoreXY printers can achieve high speeds and accelerations.

  • Reduced Inertia: The stationary motors minimize inertia, leading to less vibration and improved accuracy.

  • Print Quality: CoreXY printers can produce high-quality prints with smooth surfaces.

• Weaknesses:

  • Complexity: The belt system is more complex than in traditional Cartesian printers, requiring careful assembly and maintenance.

  • Belt Tension: Proper belt tension is crucial for accuracy and can be challenging to maintain.

  • Cost: CoreXY printers can be more expensive than basic Cartesian printers.

• Ideal Applications:

  • High-speed, high-precision printing

  • Professional and industrial applications

  • Printing large objects with minimal vibration

Choosing Your Dance Partner: Which Configuration is Right for You?

The best 3D printer configuration depends on your specific needs and priorities:

• Cartesian: A solid all-rounder, ideal for beginners and general-purpose printing.

• Delta: Excels in speed and tall prints, but requires more calibration expertise.

• CoreXY: Offers the best combination of speed and precision, but comes with increased complexity and cost.

By understanding the unique "dance" of each configuration, you can choose the 3D printer that will best bring your creative visions to life.
