The Heart of the Machine: Understanding the 3D Printer Extruder

HARDWARE

3/9/20253 min read

In the world of 3D printing, the extruder is the unsung hero, the workhorse that brings your digital designs to life. It's the component responsible for melting and depositing the filament, layer by layer, to build your three-dimensional objects. But how does this seemingly simple device actually work? Let's dive in and explore the inner workings of a 3D printer extruder.

The Anatomy of an Extruder

A typical 3D printer extruder consists of two main parts:

  • Cold End: This section handles the intake and feeding of the filament. It includes a filament drive gear, which grips the filament and pushes it forward, and a bearing, which guides the filament smoothly into the hot end.

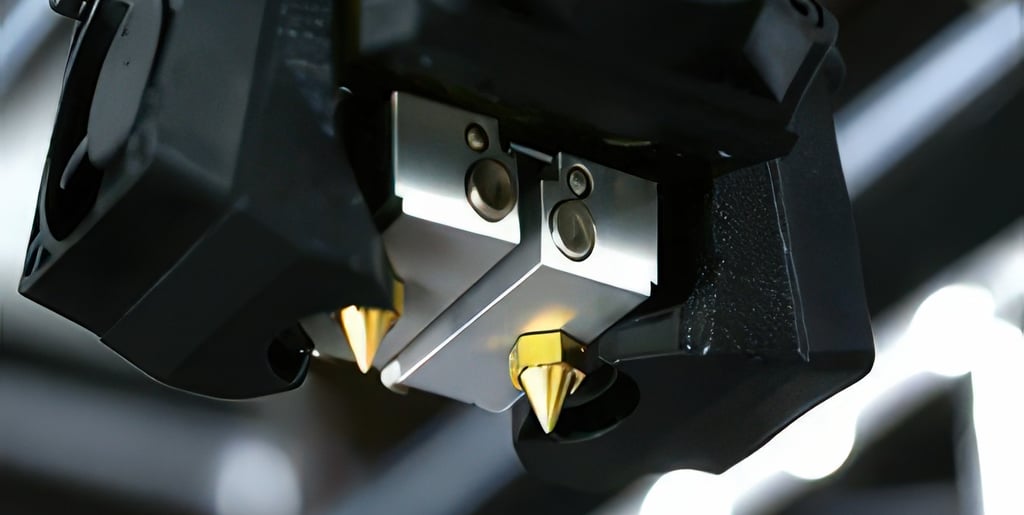

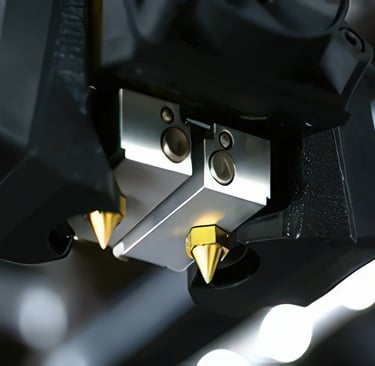

  • Hot End: This is where the magic happens. It consists of a heating element, a thermistor (temperature sensor), and a nozzle. The heating element raises the temperature of the hot end to melt the filament, while the thermistor monitors the temperature to ensure precise control. The molten filament then flows through the nozzle and is deposited onto the print bed.

The Extrusion Process

  1. Filament Intake: The filament is fed from the spool through the cold end and into the hot end.

  2. Heating and Melting: The heating element in the hot end raises the temperature to the melting point of the filament. The thermistor provides feedback to the printer's control board, ensuring the temperature remains stable.

  3. Extrusion: The filament drive gear pushes the molten filament through the nozzle, depositing it onto the print bed or previous layer.

  4. Cooling and Solidification: As the molten filament exits the nozzle, it cools and solidifies, bonding with the previous layer to form the 3D object.

Types of Extruders

There are two main types of extruders used in 3D printing:

  • Direct Drive: In a direct drive extruder, the filament drive gear is located directly above the hot end, providing more precise control over filament movement. This is often preferred for flexible filaments.

  • Bowden: In a Bowden extruder, the filament drive gear is located further away from the hot end, connected by a Bowden tube. This reduces the weight of the print head, allowing for faster movement and potentially higher print speeds.

Factors Affecting Extrusion

Several factors can influence the extrusion process:

  • Filament Type: Different filaments have different melting points and flow characteristics, requiring adjustments to the extruder temperature and speed.

  • Nozzle Size: The size of the nozzle affects the flow rate and resolution of the printed object. Smaller nozzles provide finer details, while larger nozzles allow for faster printing.

  • Extrusion Temperature: The temperature of the hot end must be carefully controlled to ensure proper melting and flow of the filament.

  • Printing Speed: The speed at which the extruder moves affects the amount of filament deposited and the overall quality of the print.

Maintenance and Troubleshooting

Proper maintenance is essential for optimal extruder performance:

  • Cleaning the Nozzle: Regularly clean the nozzle to prevent clogs and ensure smooth filament flow.

  • Lubricating the Filament Drive: Keep the filament drive gear and bearing lubricated to reduce friction and wear.

  • Checking for Wear and Tear: Inspect the extruder components for signs of wear and tear, and replace them as needed.

Common extruder problems include clogs, jams, and inconsistent extrusion. Troubleshooting these issues often involves adjusting the temperature, cleaning the nozzle, or checking for filament tangles.

The Future of Extrusion

As 3D printing technology continues to evolve, we can expect to see even more innovative extruder designs. This includes multi-material extruders, which can print with multiple filaments simultaneously, and high-flow extruders, which can deposit material at much faster rates.

The extruder is a critical component of any 3D printer, and understanding its function is essential for achieving successful prints. By mastering the art of extrusion, you can unlock the full potential of 3D printing and bring your creative visions to life.
