The Power of Nozzle Width in 3D Printing

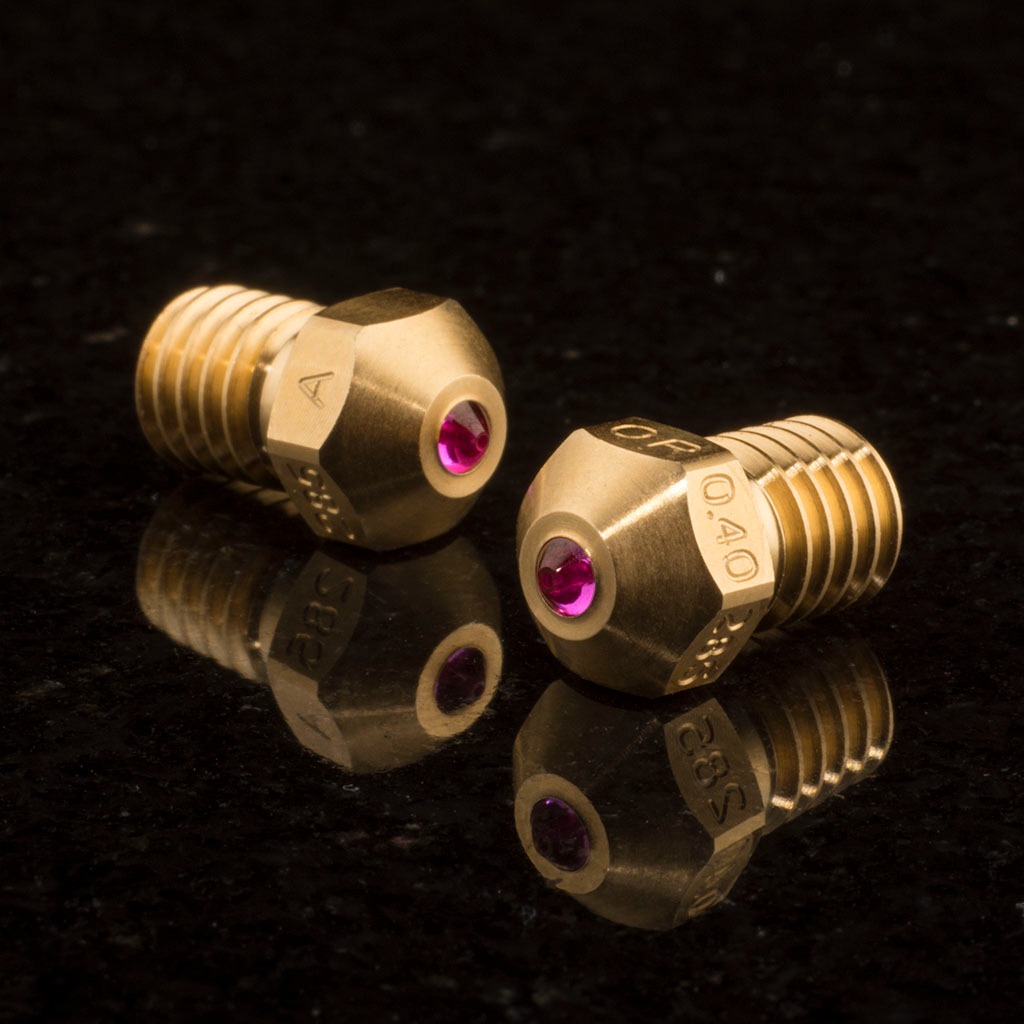

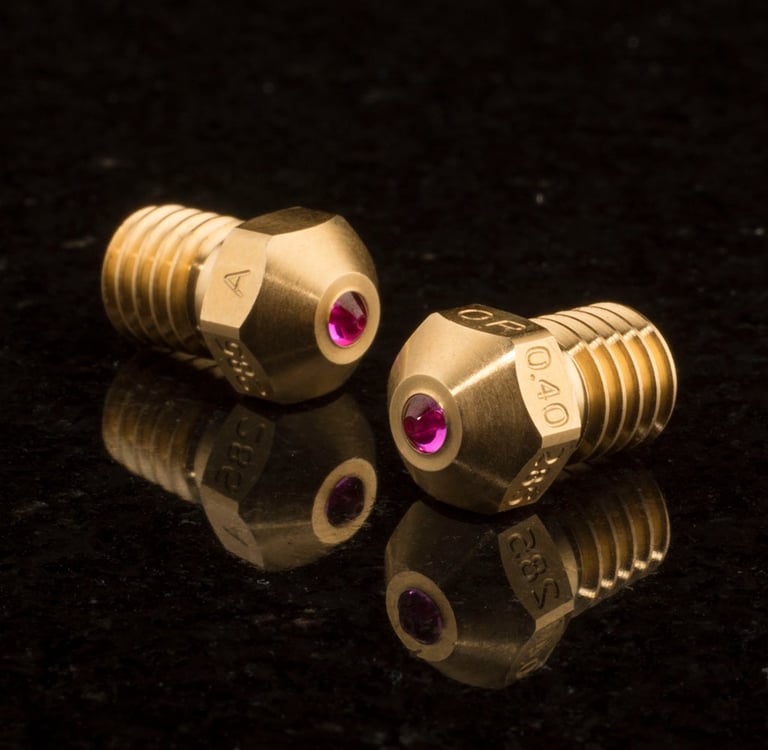

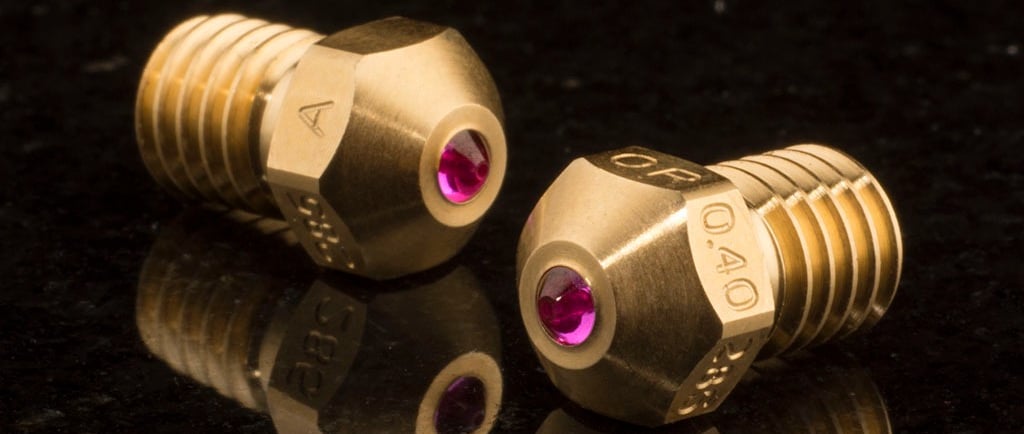

The humble nozzle – that tiny brass or steel tip on your 3D printer – might seem like a minor component, but it wields significant influence over the speed, strength, and detail of your prints. Beyond just extruding filament, the nozzle width you choose can dramatically alter the characteristics of your final creation. Let's dive into the fascinating world of nozzle sizes (0.2mm, 0.4mm, 0.6mm, and 0.8mm) and explore the unique advantages each offers.

Think of it like choosing a paintbrush. A fine tip allows for intricate details, while a broader brush covers larger areas quickly. The same principle applies to your 3D printer nozzle.

The Standard Workhorse: 0.4mm Nozzle

The 0.4mm nozzle is often the default and for good reason. It strikes a fantastic balance between detail, strength, and printing speed. It's the versatile all-rounder, capable of producing good quality prints for a wide range of applications.

Uses:

• General-purpose printing: Perfect for everyday prints, functional parts, and prototypes where a good balance of detail and strength is needed.

• Intricate details (to a degree): Can handle reasonably fine features and curves.

• Good surface finish: Produces a smooth enough surface for most applications without excessive post-processing.

Your reliable everyday tool, ready for most tasks.

The Precision Artist: 0.2mm Nozzle

Stepping down to the 0.2mm nozzle is like picking up a fine-tipped pen. This smaller aperture allows for incredibly detailed prints with a smooth surface finish. However, this comes at the cost of printing speed.

Uses:

• Highly detailed miniatures and figurines: Capturing intricate features and fine lines with remarkable precision.

• Jewelry molds and intricate patterns: Creating delicate designs with sharp definition.

• Small, detailed mechanical parts: Printing tiny gears, intricate mechanisms, and components requiring high accuracy.

• Thin-walled objects with fine features: Achieving delicate structures with well-defined edges.

Your go-to for projects demanding the utmost detail and a smooth finish, where time is less of a constraint.

The Speedy Producer: 0.6mm Nozzle

Moving up to the 0.6mm nozzle starts to prioritize speed and strength over ultra-fine detail. The wider extrusion path lays down more material per layer, resulting in faster print times and stronger layer adhesion.

Uses:

• Larger functional parts: Printing robust brackets, tools, and structural components quickly.

• Prototypes requiring strength and speed: Generating larger iterations faster for testing and design validation.

• Prints where layer lines are less critical: Focusing on functionality over a perfectly smooth aesthetic.

• Filling larger volumes efficiently: Reducing print times for bulky objects.

Your efficient workhorse for larger, stronger prints where speed is a key factor.

The High-Volume Hero: 0.8mm Nozzle

The 0.8mm nozzle is the big hitter, designed for rapid material deposition and the creation of large, strong parts quickly. Detail is sacrificed for sheer volume and speed.

Uses:

• Large structural components: Printing big brackets, frames, and supports with significant strength.

• Rapid prototyping of large objects: Quickly creating bulky forms for initial assessments.

• Prints where speed and strength are paramount over detail: Functional parts that need to be produced quickly and withstand significant stress.

• Creating thick, robust walls: Ideal for parts requiring high impact resistance.

Your powerhouse for churning out large, strong parts in the shortest amount of time.

Choosing the Right Nozzle for the Job:

The best nozzle width for your project depends entirely on your priorities:

• For intricate details and smooth surfaces: Opt for a 0.2mm nozzle. Be prepared for longer print times.

• For a balanced approach to detail, strength, and speed: The 0.4mm nozzle is your reliable all-rounder.

• For faster prints and increased strength with slightly less detail: The 0.6mm nozzle is a great choice.

• For the quickest prints of large, strong parts where fine detail isn't crucial: Reach for the 0.8mm nozzle.

It's also worth noting that the optimal layer height is generally a fraction of your nozzle diameter (e.g., 0.1mm layer height for a 0.2mm nozzle, up to 0.4mm layer height for a 0.8mm nozzle). Experimenting with different layer heights within the recommended range can further fine-tune your print quality and speed.

Investing in a set of different sized nozzles can significantly expand the capabilities of your 3D printer, allowing you to tailor your machine to the specific demands of each project. So, don't underestimate the power of that little tip – understanding nozzle widths is key to unlocking new dimensions in your 3D printing journey!
